Surface Grinding Machine (Heavy duty) with complete accessories
Surface Grinding Machine (Heavy duty) with complete accessories
|
|
|
Comply / non-comply (please fill-up with your quoted machine spec). |
|
|
Name of the firm/ Local agent with full address |
Mazzak Inter –Trade , 52, New Eskaton Road, TMC Building 6th floor, Dhaka-1000 |
Complied |
|
|
Principal Name /Manufactures Name with full address |
To be mentioned |
Unit G38, 28th Buliding,No.140 Tianlin Road, Xuhui District ,Shanghai,China |
|
|
Nomenclature |
To be mentioned |

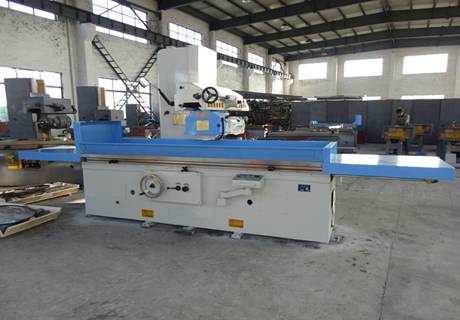

Hydraulic Automatic surface grinding machine |
|
|
Make and Model |
To be mentioned |
Tieju,M7150 |
|
|
Country of Manufacturer |
Group A Countries |
China(mainland) |
|
|
Country of Assembly |
Group A Countries |
China(mainland) |
|
|
Year of Manufacturer |
Not before 2014 |
2001 |
|
|
Purpose |
To make the engine head surface smooth and even |
To make the engine head surface smooth and even |
|
|
Specifications |
|||
|
Working Table size (min) |
1500 x 500mm |
1600 x 500mm |
|
|
Maximum working length |
1500mm |
1600mm |
|
|
Maximum width of grinding |
350mm |
500mm |
|
|
The vertical moving distance of grinding head |
60 – 80mm |
800mm |
|
|
The vertical moving distance of spindle box |
750 – 950mm |
800mm |
|
|
Spindle speed |
To be mentioned |
1440r/min |
|
|
Transverse moving speed of working table |
40 – 900mm/min. |
5-30m/min |
|
|
Overall dimension (LxWxH) |
To be mentioned |
4400 x 1900x2400
|
|
|
Workpiece capacity – length |
To be mentioned |
1600mm |
|
|
Warranty |
1 year after receipt |
1 year |
|
|
Manuals |
1 set operation and reapir manual in English language |
1 set operation and repair manual in English language |
|
Accessories of M7150(1600*500mm)
|
|
Name |
specification |
number |
Remarks |
|
1 |
Cooling system |
|
1set |
|
|
2 |
Electromagnetic chuck |
500x800 |
Two blocks |
|
|
3 |
Wheel chuck |
|
One set |
installed in the machine |
|
4 |
Grinding Wheel |
Ф400 x 50 xФ127 |
One block |
|
|
5 |
machine stand pad |
HJ x 81—1 |
Five pieces |
Installed in the annex |
|
6 |
The balance shaft |
Ф32x270 |
One piece |
Installed in the annex |
|
7 |
balance plate and screw |
M6 x 12 |
3sets |
One set installed in the machine |
|
8 |
Diamondpen holder |
|
One set |
Installed in the annex |
|
9 |
Iron puller |
|
One piece |
Installed in the annex |
|
10 |
Sleeve nut / handle |
M64 x 2 |
One set |
Installed in the annex |
|
11 |
inner hexagon spanner |
19 |
One piece |
Installed in the annex |
|
12 |
The foot bolt, nut, Washer |
M20 x 400、M20、20 |
Six sets |
Installed in the annex |
|
13 |
Grinding wheel balancer |
|
One set |
|
