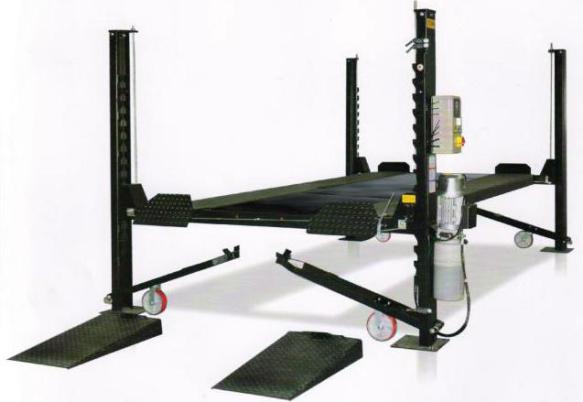

1.Four-post parking lift GL-P
|
Technical Date |
|
|
|
Item No. |
GL-3.5P |
GL-4.0P |
|
Lifting capacity |
3500kg |
4000kg |
|
Lifting height |
1845mm |
1845mm |
|
Minimum height |
115mm |
115mm |
|
Overall height |
2226mm |
2226mm |
|
Overall width |
2594mm |
2594mm |
|
Runway Length |
4200mm |
4200mm |
|
Overall Length |
5355mm |
5355mm |
|
Lifting time |
≤60s |
≤60s |
|
Lowering time |
＞30s |
＞30s |
|
Motor |
220V/380V 50Hz/60Hz 1Ph/3Ph |
220V/380V 50Hz/60Hz 1Ph/3Ph |
|

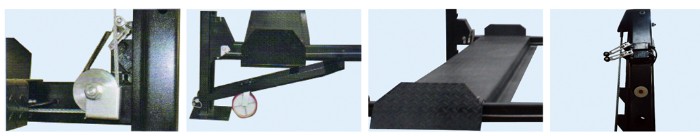

1. Single hydraulic cylinder drive. |
|
2. Manual release from one side. |
|
3. Mechanical safety latch in four columns |
|
4. Double up-limt switch grants double protection. |
|
5. Valid protecion system for broken steel cable or oil hose, low height alarming buzzer brings your attention to safety operation. |
|
6. Anti-surge valve that equipped in hydraulic joint ensures no danger in case of oil hose broken. |
|
7. Relidf valve protect against overloading. |
|
8. Front and rear positioning wheel stop. |
|
9. Plastic oil drip tray protects the vehicle below and floor from dirty |
|
10. Mobile device make the lift move easily. |
|
11. "UP"DOWN""POWER""STOP" button on control panel,simply operation. |
|
12. 24V low-voltage safe control keeps customers away from enexpected injury. |
|
13. CE Certificated. |
