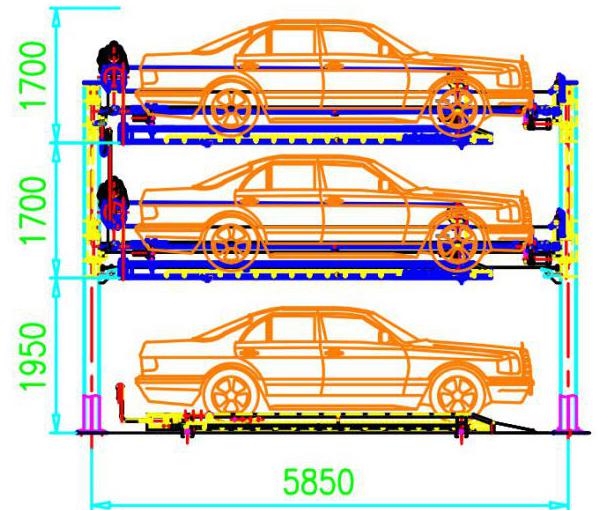

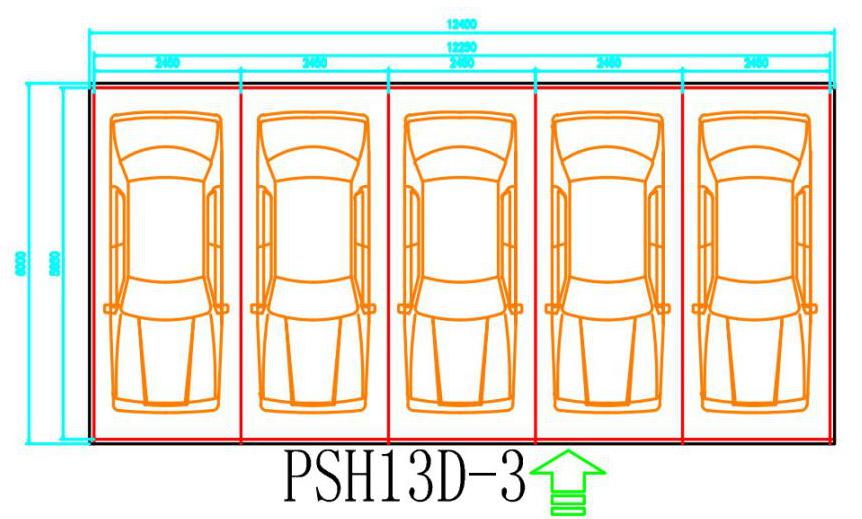

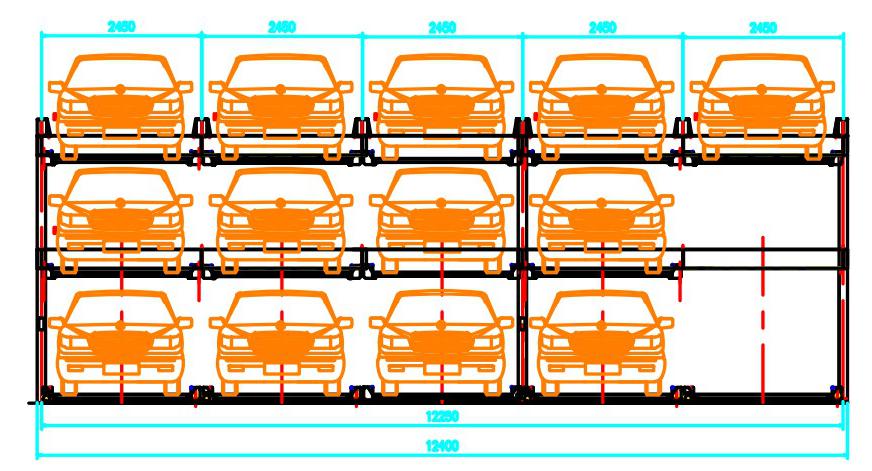

Three layer parking equipment

1 This model is all steel components suitable for use in the basement parking can also be designed to stop the use of outdoor space and erection of canopy, peripherals can be renovated to increase the appearance. 2-level car parking carrier board to do lifting action, when the vehicle is carrying out an empty car plate fell to the ground floor, ground floor car parking carrier board to do just sliding action, but each group must have a sliding space to facilitate the upper decreased use of parking spaces. Configuration of multiple security detection devices to ensure safe and reliable operation throughout. 4 anti-fall device. 5 people, vehicles straying alarm device. 6 vehicles high, long alarm device. 7 phase undervoltage, overcurrent and overload protection devices. 8 off self-locking protection device. 9 emergency stop button device. 10. Fully automatic PLC control, easy to operate, using buttons, IC card, remote control or control a variety of ways to identify the body.

Name		Spec	Material
Frame	Uprights	H150×150	Q235
	crossbeam	H300×150	Q235
	Stringers	H248×124	Q235
The second and the third floor vehicle platform	Vehicle platform edge beam	Integrated processing 3.5t cold-pressed steel plate	Q235
The second and the third floor vehicle platform	Wave board	Zinc Plating and billow forming 2.0t galvanized steel sheet	Zinc Plating
The first floor vehicle platform	Vehicle platform edge beam	Integrated processing 3.5t cold-pressed steel plate	Q235
	Wave board	Zinc Plating and billow forming 2.0t galvanized steel sheet	Zinc Plating
	Traverse motor reducer	0.2kW
	Traverse drive chain	10A
Lift device	Second and third layer lift motor reducer	2.2kW
	Electric chain	16A-2
	Rope	Φ9.5
	Main drive shaft	Φ55	45
	Reel	Φ210	Q235
	Guide wheel	Φ210	45
	Large sprocket	16A-2	45
	Motor sprocket	16A-2	45
Fall-arrest systems	Electromagnet	MQB-25/40 AC220V
	Safety hook		Q235
	Tie Rod	Square Pipe 15X15X1.5	Q235
